Kinefinity EAGLE SDI Electronic Viewfinder
The EVF utilizes a 0.7″ / 1.3cm 1920 x 1080 Micro OLED panel with a contrast ratio of 10,000:1. Supported by 10-bit processing, it ensures exceptional color depth and precision, presenting a broad spectrum of 16 million colors.
The Kinefinity Electronic Viewfinder supports the SMPTE protocol SDI interface, allowing it to work smoothly with the vast majority of professional cinema cameras on the market. Whether it’s 3G or 1.5G SDI output video signals from various cameras, in formats like 1080p, 1080i, or 1080psf, they can all be displayed on the EVF’s Micro-OLED screen.
33°
Field of View
-6D ~ +2D
Diopter
Do you want to try the EVF? Of course you can
Fill out the form
and let we contact you
If you want to try the evf, you need to fill out the form to have the demo product sent to you.
Communication
You will be contacted via e-mail or phone according to the information you provide in the form.
You are now
ready to try EVF
Your trial period will start when the EVF reaches you, at the end of the period you will have to decide whether to buy or return it.
Fill out the form
and let we contact you
If you want to try the evf, you need to fill out the form to have the demo product sent to you.
Communication
You will be contacted via e-mail or phone according to the information you provide in the form.
You are now
ready to try EVF
Your trial period will start when the EVF reaches you, at the end of the period you will have to decide whether to buy or return it.
CHOOSE YOUR NEW EAGLE EVF.
AND THEN TAME IT.

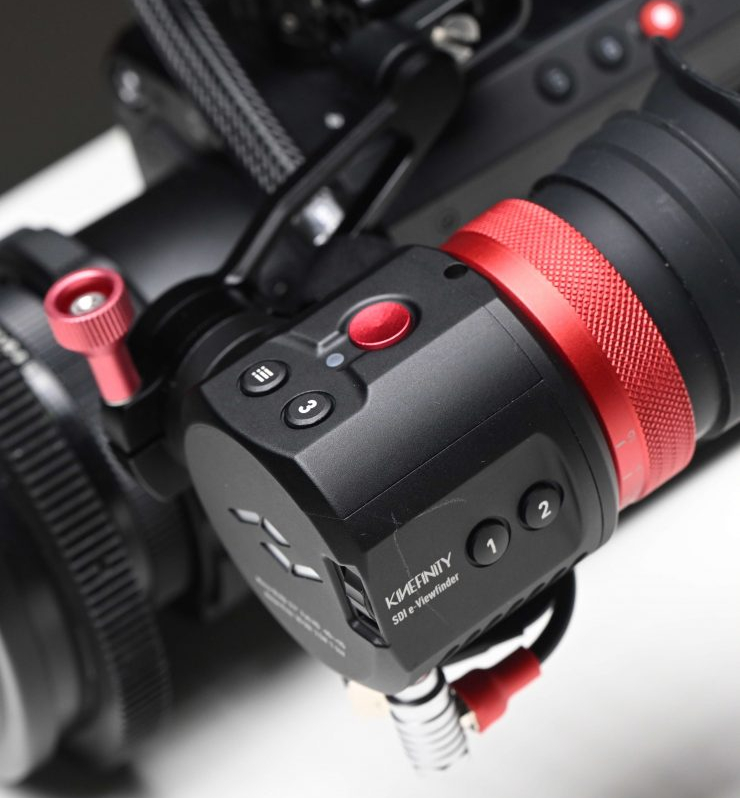

The EVF is equipped with four function buttons, a Menu button, a toggle button, and a function knob, all designed for making various adjustments. These controls are thoughtfully positioned on the EVF, ensuring ease of use. The arrangement allows users to quickly and efficiently access the settings and functions they need, enhancing the overall user experience.
MULTIPLE COLOR:
CHOOSE YOUR NEW EAGLE EVF.
AND THEN TAME IT.
The EVF is equipped with four function buttons, a Menu button, a toggle button, and a function knob, all designed for making various adjustments. These controls are thoughtfully positioned on the EVF, ensuring ease of use. The arrangement allows users to quickly and efficiently access the settings and functions they need, enhancing the overall user experience.
MULTIPLE COLOR:
Kinefinity Eagle SDI e-Viewfinder Kit
All equipment required for EVF is in this kit
You can activate multiple assist tools at once with the EVF.
Peaking can be set to Color, Outline, or Mono, with adjustable sensitivity and color.
False Color provides a consistent comparison, similar to other cameras like the ARRI Amira.
Image Zoom lets you use the scroll wheel to adjust the view. If the On-Screen Display (OSD) is active, activating Image Zoom will hide it, providing a clear indicator. Image Zoom defaults to the center position when turned off and on again.
False color and waveform displays reflect the signal received by the EVF. If a LUT is activated, these displays will match that image rather than a LOG signal.
You can activate multiple assist tools at once with the EVF.
Peaking can be set to Color, Outline, or Mono, with adjustable sensitivity and color.
False Color provides a consistent comparison, similar to other cameras like the ARRI Amira.
Image Zoom lets you use the scroll wheel to adjust the view. If the On-Screen Display (OSD) is active, activating Image Zoom will hide it, providing a clear indicator. Image Zoom defaults to the center position when turned off and on again.
False color and waveform displays reflect the signal received by the EVF. If a LUT is activated, these displays will match that image rather than a LOG signal.

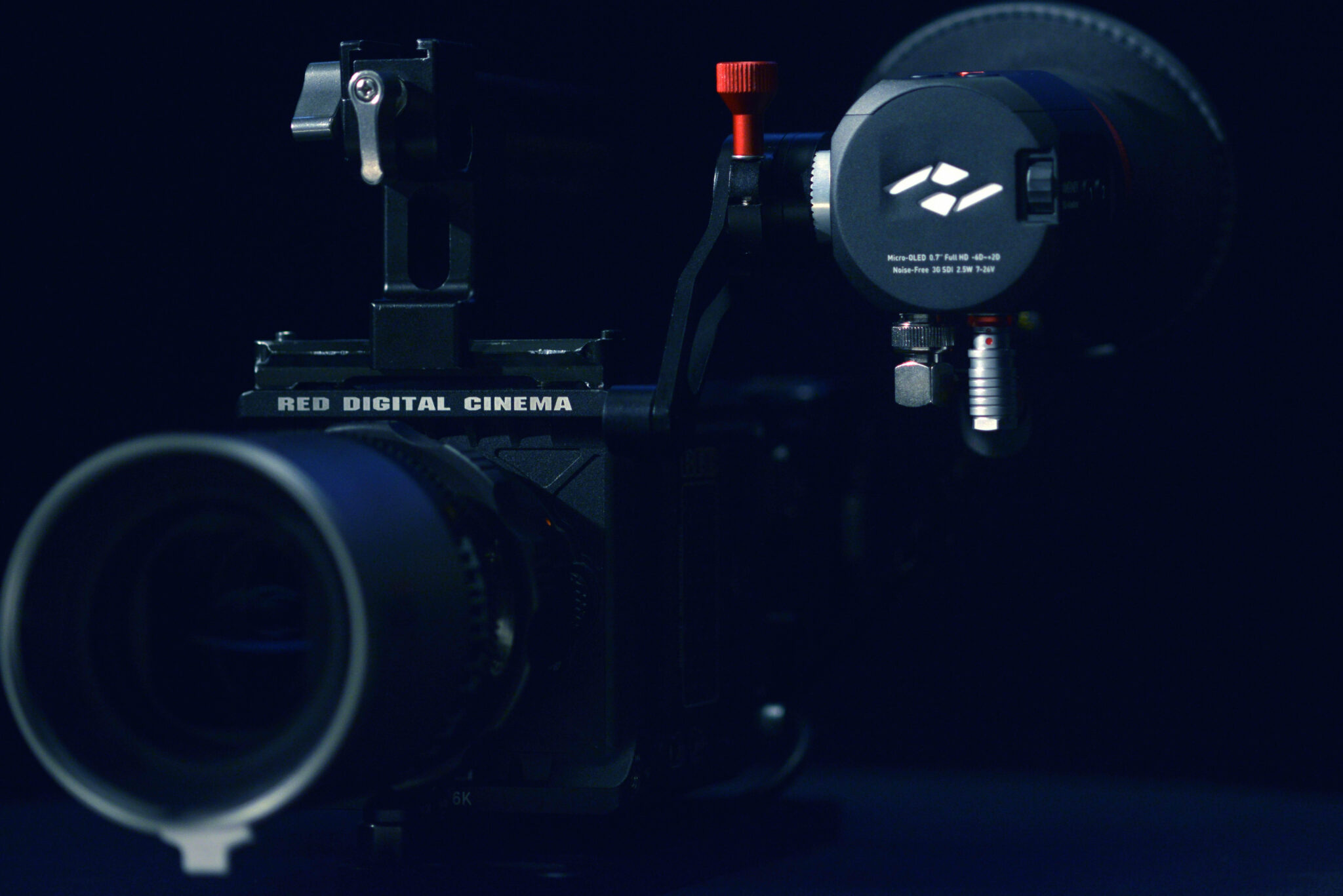

The Eagle SDI e-Viewfinder includes support for recording Run/Stop trigger functionality. It can be activated through the RS port on the SDI e-Viewfinder cable when connected to the Fischer RS port on compatible cameras. This feature works with cameras equipped with a Fischer RS port, including ARRI models, RED V-RAPTOR XL, SONY VENICE, and Kinefinity cameras.
For cameras lacking an RS port, such as the RED KOMODO/V-RAPTOR, recording can be triggered with additional accessories like the Tilta RED KOMODO Camera Cage.
The Eagle SDI e-Viewfinder includes support for recording Run/Stop trigger functionality. It can be activated through the RS port on the SDI e-Viewfinder cable when connected to the Fischer RS port on compatible cameras. This feature works with cameras equipped with a Fischer RS port, including ARRI models, RED V-RAPTOR XL, SONY VENICE, and Kinefinity cameras.
For cameras lacking an RS port, such as the RED KOMODO/V-RAPTOR, recording can be triggered with additional accessories like the Tilta RED KOMODO Camera Cage.
The Eagle SDI e-Viewfinder offers a range of advanced features and functions, all within a compact and budget-friendly design.
It comes equipped with a 0.7″ / 1.3 cm 1920 x 1080 Micro OLED display, delivering an impressive contrast ratio of 10,000:1.
This panel is capable of supporting 8-bit color depth and rendering up to 16 million colors, with internal processing working at a 10-bit depth.
Kinefinity guarantees that each Eagle SDI e-Viewfinder undergoes precise color calibration during production, ensuring accurate color representation without the need for further calibration under typical usage. However, factory calibration services are available if needed.
The Eagle SDI e-Viewfinder offers a range of advanced features and functions, all within a compact and budget-friendly design.
It comes equipped with a 0.7″ / 1.3 cm 1920 x 1080 Micro OLED display, delivering an impressive contrast ratio of 10,000:1.
This panel is capable of supporting 8-bit color depth and rendering up to 16 million colors, with internal processing working at a 10-bit depth.
Kinefinity guarantees that each Eagle SDI e-Viewfinder undergoes precise color calibration during production, ensuring accurate color representation without the need for further calibration under typical usage. However, factory calibration services are available if needed.
